LINGYUE ELECTRIC POWER

BQ Electric Fitting J Pig Tail Cable Hook

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

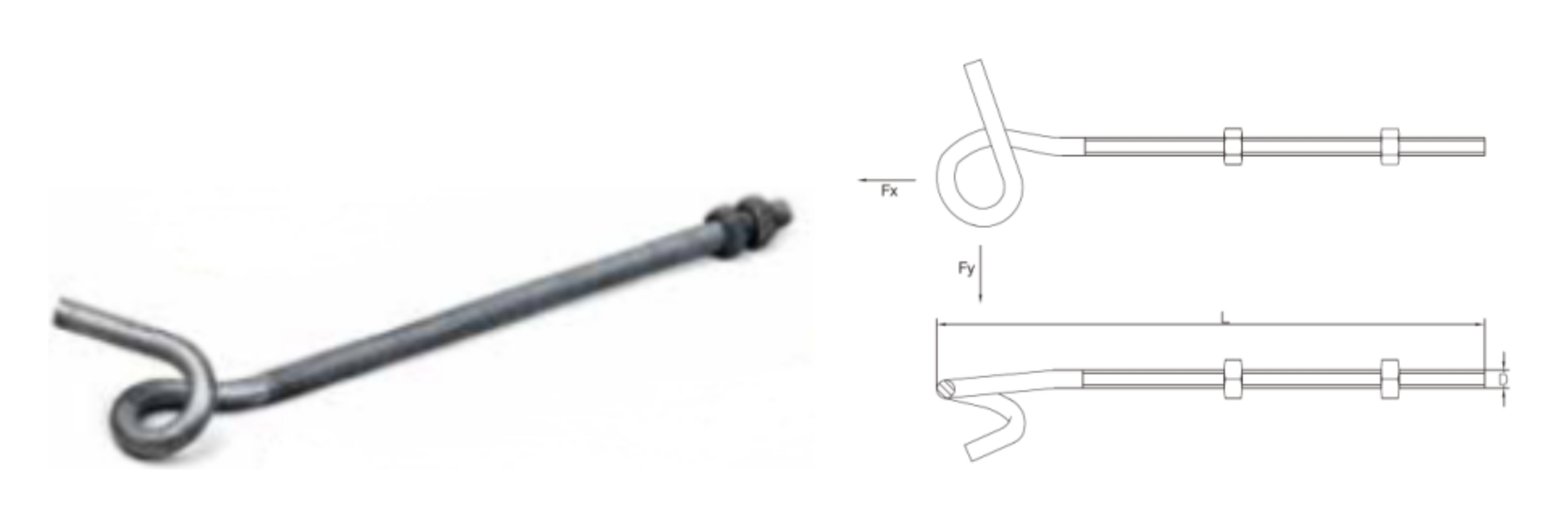

BQ series pigtail eye bolt is used on wooden, concrete and other power poles for receiving ABC across dead end clamps and suspension clamps
Middle point can be adjusted by 2 free nuts.

Its installation is easy, by pushing it through a hole and tightening with a nut.

Item No.	Dimension(mm)			Breaking Load
Item No.	L	C	D	Fx,kN	Fy,kN
BQ 12-55	115	45	M12	2	0.4
BQ 12-250	310	220	M12	2	0.4
BQ 12-300	360	270	M12	2	0.4
